3D Printer Bed Leveling: A Complete How-To Guide for Consistent First Layers

What is bed leveling and why it matters

Bed leveling is the process of making the distance between the printer nozzle and the build surface uniform across the entire print area. When the nozzle is too close, the first layer can smear, causing poor extrusion and failed adhesion; when it is too far, the filament may not stick at all. Achieving a precise 3d printer bed level ensures consistent first layers, reduces failed prints, and improves surface quality on every object you print. According to Print Setup Pro, proper bed level is foundational to reliable prints, especially for beginners who are still dialing in extrusion and adhesion. The Print Setup Pro team found that users who regularly level their bed report smoother calibration and fewer print failures. Whether you print prototypes, functional parts, or model figurines, a well leveled bed is the cornerstone of repeatable results. In this guide you will learn practical methods, common pitfalls, and a repeatable routine you can reuse for many printers.

Throughout this article we’ll mention how to approach the task with both manual and automatic strategies, so you can pick what suits your printer and workflow while keeping 3d printer bed level as a consistent baseline.

Tools and materials you’ll need

Before you start, assemble a small toolkit and a few common accessories. A stable work area, basic hex wrenches, a sheet of printer paper or a feeler gauge, and a selection of calibration prints or test patterns are essential. An optional digital caliper can help you measure screws or bed corner heights precisely. Keep spare filament handy to verify adhesion during test prints. Having a tidy, level workspace reduces errors and makes bed leveling more repeatable. Finally, print a simple calibration square to validate your setup after adjustments. The goal is a repeatable bed level across the print area that adapts to your chosen filament and nozzle height.

Basic bed leveling methods

There are three common approaches to bed leveling: manual, semi auto with a leveling sensor, and fully automatic bed leveling using a probe. Manual leveling relies on turning the bed screws in small increments while checking the gap with a piece of paper or a feeler gauge. Auto and semi-auto methods use a probe to detect distance at multiple points, then adjust or guide the nozzle height accordingly. Each method has trade-offs in precision, time, and compatibility with different printers and firmware. For many users, manual leveling remains a reliable baseline technique, while auto leveling offers repeatability for complex geometries or multi-material setups.

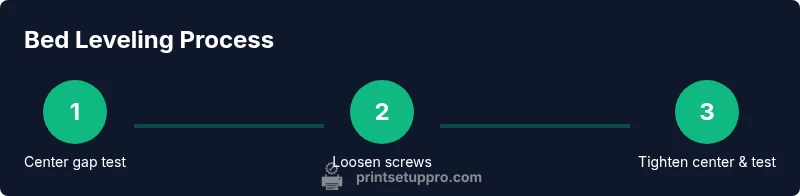

Step-by-step workflow for a typical Cartesian 3D printer

1. Home all axes and preheat the bed to your filament’s typical first-layer temperature. This helps account for thermal expansion during measurement. Tip: keep a consistent ambient environment to avoid draft-induced warping.

2. Move the nozzle to the center of the bed and loosen the corner screws slightly. This lets you adjust height without binding the bed. Tip: start with a small clearance so you don’t crash into the bed when probing.

3. Use a standard sheet of paper and slide it between the nozzle and bed at the center. If the paper drags, lower the nozzle; if it slides freely, raise the nozzle. This is your baseline gap. Tip: perform this test at the three center points and verify consistency.

4. Tighten the center screw just enough to maintain the established gap, then re-check the corners. Make small adjustments in 0.05–0.1 mm increments to avoid over-tightening. Tip: record the gap at each corner for future reference.

5. If your printer supports it, set the Z offset in your slicer or firmware, so the first layer starts at the correct height when you begin a print. Tip: recheck after the bed heats up, as expansion can change the gap.

6. Run a calibration print with a simple test pattern (a single-wall square or a 20 mm cube). Observe the first layer; if it looks uneven, repeat the center and corner checks. Tip: if adhesion is weak, consider adjusting bed temperature or filament flow slightly.

7. Document your final bed level settings and reset your process for future prints. Consistency is the key to reliable results across jobs and materials. Estimated total time: 30–45 minutes.

Calibrating for different filament and first layer

Filament type and nozzle diameter influence how much clearance you need. For softer materials, you may want a slightly higher first-layer gap to improve adhesion; for brittle or high-temp filaments, a tighter gap can improve surface smoothness. Always start with the baseline gap you established during bed leveling and adjust in small increments as you test. Remember to harmonize the nozzle height with your slicer settings, including first-layer speed and extrusion width. The bed should present a uniform line of filament across the entire print surface, not thin lines at the edges and splotches in the center.

Common pitfalls and how to fix them

Common issues include a bed that’s not flat, screws that loosen over time, and inconsistent gaps across the bed. If the bed isn’t level, re-check corner screws after a few minutes of printing, since heat can cause minor warping. A loose screw may drift during operation, leading to a changing gap mid-print. If you notice unusual first-layer behavior, re-run the paper test at multiple points and correct any outliers. Regularly inspecting the bed and alerting yourself to gradual drift will save you from major print failures.

When to re-level and a maintenance routine

Re-leveling is typically needed after changing the nozzle, after a belt adjustment, or if you notice worsening first-layer adhesion. Establish a proactive routine: check bed level monthly or after heavy usage, then perform a quick center-and-corner test. For multi-material setups, revalidate every time you switch materials. A consistent maintenance routine helps you catch drift early and keeps prints predictable.

Quick diagnostics if prints fail after leveling

If a print still fails after bed leveling, verify extrusion by performing a small, controlled test print. Check for curled edges or bulky blobs at edges of the first layer, which indicate adhesion issues. Inspect the build surface for debris or oil; clean with isopropyl alcohol as needed. If you use an auto leveling system, re-run the probe calibration to ensure the sensor is reading correctly. Keep a baseline set of measurements in your notes for future reference.
