Prototyping a 3D Printer: A Practical How-To Guide
Learn how to prototype a 3D printer component from CAD to final test. This practical guide covers planning, materials, workflow, and troubleshooting for home offices and makers.
According to Print Setup Pro, you will learn how to prototype a 3d printer part by iterating CAD designs, printing test pieces, and validating fit. Key steps include defining specs, selecting filament, printing at staged resolutions, and performing functional tests. Have a reliable printer, calibrated bed, measurement tools, and a simple documentation workflow to track changes.
What prototyping a 3D printer involves
Prototyping in the context of 3D printing is a structured cycle of design, fabrication, and evaluation aimed at validating a part’s form, fit, and function before committing to a final version. For hobbyists and professionals, the goal is to translate a concept into a physical model quickly while controlling costs and reducing wasted material. Print Setup Pro emphasizes that successful prototyping blends clear objectives, repeatable processes, and disciplined record-keeping so every iteration teaches something tangible. This section outlines the core idea: you will create multiple physical versions of a component, compare them against defined criteria, and refine the design based on evidence gathered from each print.
Planning your first prototype
Great prototypes start with a written plan. Define the part’s primary purpose, its interfaces with other components, and the minimum viable set of features needed to test the concept. Create a simple measurement plan that lists critical dimensions and tolerances. Establish acceptance criteria before you begin—what will count as a successful iteration? As you plan, consider material choices, printer capabilities, and potential printing challenges such as overhangs or bridging. Print Setup Pro recommends starting with a small, representative model to limit waste and quickly learn how your printer behaves with chosen materials.
Choosing materials and filament for prototypes
Material choice directly affects print quality, strength, and the accuracy of your prototype. PLA is commonly used for quick tests due to its ease of use and low odor, while PETG offers greater toughness for functional tests. ABS or other engineering filaments can be considered for higher-temperature environments or when you need better heat resistance. When selecting filament, consider printing temperature, part rigidity, and surface finish. Remember to calibrate the printer for the chosen material, since different filaments require different bed temps and extrusion rates to achieve dimensional accuracy.
Setting up a repeatable print workflow
A repeatable workflow minimizes surprises between iterations. Start with a consistent design-to-print pipeline: clean CAD export, reliable slicer settings, and a standard first-layer calibration. Use a baseline print that clearly tests a key feature (e.g., a mounting hole, a bracket corner) and keep a log of parameters (layer height, infill, print speed, cooling). Maintain a stable environment when possible, and document any deviations from your standard workflow so you can reproduce results later. Print Setup Pro suggests using a checklist to ensure every print starts from a known state.
Iteration cycles: how to test and refine
Expectation matters in prototyping: plan for multiple iterations. After each print, compare actual measurements with your target dimensions, test fit with mating parts, and observe functional performance. Use calipers or gauges to quantify deviations and note where the model diverges from expectations. Apply changes in the CAD model, re-export, and reprint. Aim for a clear progress chart: what changed, what was learned, and how the next print should address it. The cadence of cycles depends on complexity and tolerance requirements.
Measuring fit and function effectively
Measuring the prototype accurately is essential to meaningful decisions. Use digital calipers for critical dimensions, a ruler for quick checks, and coordinate gauges if available. Document deviations side-by-side with the intended values. For functional tests, simulate real-world conditions your final part would encounter, such as mounting forces or motion ranges. If fit isn’t exact, revisit CAD features like hole diameters, clearance, and snap-fit tolerances. Consistent measurement techniques reduce ambiguity and accelerate convergence toward a satisfactory design.
Common pitfalls and how to avoid them
Cobbling together a prototype without a plan leads to wasted material and time. Avoid large, ambitious features in early iterations; start with simple geometries that reveal a particular issue. Under-extrusion, warping, or poor bed adhesion are common culprits—address calibration, temperature settings, and bed leveling first. Don’t skip documentation; every failed print teaches you where to improve. Also, be mindful of environmental factors such as temperature and drafts that can affect print quality.
Post-processing and finishing for prototyping
Post-processing can dramatically improve the perceived and functional quality of a prototype. Light sanding smooths surface irregularities, while joint fills or epoxy can aid assembly tests. If aesthetics matter for demonstration, consider a light coating or paint to highlight critical features. Be mindful that post-processing can subtly alter dimensions; re-measure after finishing to confirm the part still meets tolerances. Keep notes on post-processing steps so future iterations replicate results.
Documentation and version control for prototypes
Version-control strategies help teams track design evolution. Maintain a central log that records design changes, print settings, measured deviations, and test outcomes. Use a simple naming convention for CAD files and STL exports that encodes the version and date. Periodically summarize learnings in a short report to inform subsequent iterations. Printing details plus measurement data create a robust archive you can reuse for future projects.
Cost, time, and resource planning
Prototyping costs and timelines scale with complexity. Start with modest expectations and plan for several iterations across a few days of work. Use a lightweight BOM to estimate filament consumption, printer wear, and potential replacements. Time estimates are influenced by print durations, post-processing, and measurement steps; breaking the project into small milestones helps manage risk and keep stakeholders aligned. Print Setup Pro notes that disciplined planning reduces surprises and speeds outcomes.
Real-world prototyping scenarios
Consider a bracket or enclosure as a practical starting point. Map out how it will interface with existing hardware, confirm clearances, and test for interference with moving parts. For each scenario, draft a minimal test that proves the critical requirement—fit, clearance, and strength. If the prototype is intended for a quick demonstration, focus on visible accuracy and fit rather than finishing details. Real-world scenarios illustrate how a methodical prototyping approach translates into reliable, reusable design assets.
Tools & Materials
- Digital caliper(0.01 mm resolution preferred for precise measurements)
- Caliper gauge(Alternative for quick checks)
- CAD software(Solid modeling or parametric design tools)
- Slicer software(Generates printable G-code; keep versioned profiles)
- Measuring tools (ruler, calipers)(For quick checks and baseline comparisons)
- PLA filament(Good for initial prototypes with easy extrusion)
- PETG filament(Higher strength and impact resistance option)
- Sandpaper (various grits)(For smoothing and finish work)
- Safety gear(Safety glasses; ensure ventilation when using heated filaments)
- Documentation notebook or digital log(Track iterations, measurements, and decisions)
- Calibrated printer bed-level tool(Ensure consistent first layer and dimensional accuracy)

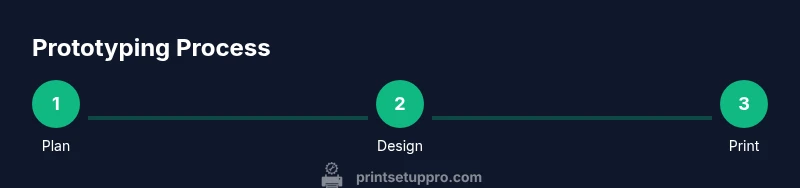

Steps
Estimated time: 2-6 hours per iteration
- 1
Define objective
State the problem the prototype must solve and list the minimum success criteria. Document constraints such as size, weight, mounting points, and operating conditions. This clarity guides design choices and prevents scope creep.
Tip: Write a one-line success criterion you can test in the first print. - 2
Create a CAD model
Model the part in your CAD tool using the defined specifications. Include mounting interfaces and tolerances flagged during planning. Save the file with a version tag to track changes.
Tip: Use parametric features so you can adjust dimensions quickly. - 3
Export and verify scale
Export an STL or STEP file and verify scale against reference measurements. Open the file in a viewer to check dimensions before slicing.
Tip: Compare key features with a caliper-based measurement plan. - 4
Configure slicer settings
Set layer height, wall thickness, infill, and supports in a repeatable profile. Use a conservative first-layer calibration to ensure reliable prints.
Tip: Document the slicer profile and any deviations observed. - 5
Print first fixture
Run the first prototype print using the baseline settings. Use a small, representative geometry to validate critical features.
Tip: Avoid long prints for the first run to limit material waste. - 6
Measure and compare
Measure critical dimensions and compare to target tolerances. Note any deviations and their potential causes (temperature, shrinkage, extrusion).
Tip: Log measurements alongside prints for correlation. - 7
Iterate CAD adjustments
Update the CAD model to address observed issues. Adjust dimensions, tolerances, or geometries based on measurements and tests.
Tip: Make one change per iteration to isolate effects. - 8
Reprint and re-test
Print the revised part and repeat the measurement and functional tests. Confirm improvement and identify remaining gaps.
Tip: Include a control print to ensure changes didn’t degrade other features. - 9
Document and archive
Save final CAD, STL, and profile with a versioned log. Store results and notes to inform future projects or redesigns.
Tip: Create a short summary of what worked and what didn’t.
People Also Ask
What is prototyping in 3D printing?
Prototyping in 3D printing is the process of creating iterative physical models from digital designs to test fit, function, and form. Each iteration reveals design strengths and weaknesses before final production.
Prototyping with 3D printing means making quick, test versions of a part to learn how it behaves in real life.
How many iterations should I expect?
The number of iterations depends on complexity and tolerances. Start with a baseline version, then refine based on measurements and functional tests.
Expect several rounds, especially for parts that interact with other components.
What filament is best for prototypes?
PLA is commonly used for fast prototyping due to ease of use, while PETG offers improved strength for functional tests. Choose based on the test needs and printer compatibility.
PLA is good for quick tests; PETG is stronger if you need sturdier parts.
How can I reduce print failures?
Calibrate the printer, start with simple geometries, and use supports as needed. Run small test prints to diagnose issues before attempting larger parts.
Make sure your printer is well calibrated and test with small, simple shapes first.
Do I need a high-end printer for prototyping?
Not necessarily. A reliable, well-calibrated entry-level printer can handle many prototypes, especially when you use robust materials and good testing practices.
You don’t always need the fanciest printer—consistency and testing matter more.
What about post-processing?
Post-processing like sanding, filling, or painting can improve finish and tolerance but may introduce dimensional changes. Factor this into your measurement plan.
Finish work helps presentation and fit, but re-measure after post-processing.
Watch Video
Quick Summary
- Define clear success criteria before printing
- Iterate with measurement-driven CAD updates
- Maintain a versioned log to track progress
- Calibrate the printer and verify scale for accuracy
- Document outcomes to inform future prototypes
