Screen Printer Machine Setup: A Step-by-Step Guide
Learn how to set up and troubleshoot a screen printer machine for consistent, high-quality prints. This guide covers essential tools, calibration, maintenance, safety, and practical tips for home studios and small shops.
You will set up and calibrate a screen printer machine to achieve consistent, high-quality prints. This guide covers essential equipment, safety considerations, and a step-by-step workflow designed for home studios and small shops. It also provides practical tips, troubleshooting strategies, and a troubleshooting mindset to minimize waste and downtime. Follow the steps closely for best results.
Why a solid screen printer machine setup matters
A clean, well-planned setup is the foundation of reliable screen printing. When your screen printer machine is properly prepared, you reduce misprints, ink waste, and downtime between jobs. According to Print Setup Pro, a well-planned screen printer machine setup saves time and reduces misprints. The Print Setup Pro team found that following a structured workflow yields more consistent results across runs, fabrics, and ink types. In practice, this means organizing your space, validating equipment readiness, and validating your exposure, ink, and squeegee choices before you start. In this section, you’ll learn how to map out a complete workflow that minimizes surprises and maximizes yield on a tight schedule. You’ll also see how proper setup translates into fewer reprints, smoother color transitions, and calmer production days for home studios and small shops.
Essential components and pre-checks
Before touching the press, gather all required components and verify the machine's health. A screen printer machine relies on several interdependent parts: the frame and mesh, the emulsion-coated screen, the squeegee and blade, the ink system, the exposure unit, and a stable print surface. Pre-checks include inspecting the frame for warps, ensuring the mesh count matches your design, confirming the emulsion has been stored correctly, and verifying the ink viscosity is within the vendor-recommended range. This pre-flight step reduces the chance of color bleed and ghosting and makes calibration easier. Keep a notebook of each screen’s mesh count, stencil type, and ink compatibility so future jobs can reuse the same settings. A well-documented setup reduces guesswork and speeds up repeat jobs across different fabrics.
Calibration and testing workflow
Calibration is about aligning the screen, platen, and substrate so every impression lands where you expect. Start by leveling the print bed, then clamp the screen frame securely to prevent motion during squeegee strokes. Next, perform a test print on a sacrificial fabric to identify misregistration, ink creep, or off-contact issues. Adjust the off-contact distance and screen tension as needed; small changes can have a large effect on print sharpness. Allow the emulsion to cure according to the manufacturer’s guidelines and verify that your exposure times yield a clean stencil without under- or over-exposure. When you’re satisfied, run a few checks at different inks and fabrics to confirm consistency. Time-saving tip: stage a quick jig that holds fabric flat and parallel to the screen to ensure repeatable results.
Troubleshooting common issues and maintenance
Even with a careful setup, issues can appear. Common culprits include misalignment, poor stencil adhesion, and ink viscosity that is too thick or thin for the mesh. Solve misalignment by rechecking registration marks and retightening the clamps. If the stencil lifts, recoat or re-expose and test again. For ink consistency, adjust the viscosity using manufacturer-recommended reducers and test on scraps. Regular maintenance matters: clean the frame edges, wipe the squeegee blade after each run, and purge the ink lines to prevent clogging. Schedule routine checks of the exposure unit lamp, vacuum table (if equipped), and dryer performance to avoid slow curing that causes smudges. Document issues and fixes so the team learns from past runs.
Speed, quality, and workflow optimization for small spaces
Small shops benefit from a compact, repeatable workflow. Use a dedicated work zone for prep, exposure, printing, and curing to minimize cross-contamination. Standardize ink types and mesh counts across most jobs to reduce changeover time. Use heat-assisted curing or flash cures to speed up drying times without sacrificing adhesion. Invest in a quality squeegee with the right durometer for your ink and substrate and keep spare blades on hand. Finally, track setup times and output quality over weeks to identify bottlenecks and optimize your process. With discipline, a screen printer machine can deliver consistent, high-quality results in a compact footprint.
Tools & Materials
- Screen printer machine(Ensure it supports the substrate sizes you print on and has stable power supply.)
- Screens (frames) with mesh count appropriate for your design(Common counts range 110-356; match to ink and fabric.)
- Squeegee blades(Keep a spare blade with correct durometer for your ink.)
- Emulsion and capillary film(Store in a cool, dark place; follow shelf life guidelines.)
- Exposure unit or strong UV light source(Ensure safe handling and correct exposure time.)
- Inks suitable for your substrate(Check compatibility with pigment and binder.)
- Chemicals: degreaser, emulsion remover, ink reducers(Use PPE; follow safety data.)
- Heat source or conveyor dryer(Adequate airflow; monitor temperature.)
- Protective equipment: gloves, safety glasses(Prevent skin/eye exposure to solvents.)
- Measuring tools: scales, syringes(Optional for precise ink mixing.)
- Cleaning rags and lint-free towels(Keep workspace clean to avoid dust on screens.)

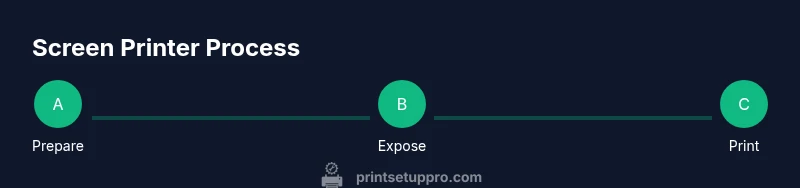

Steps
Estimated time: 1.5-2 hours
- 1
Prepare workspace and safety setup
Clear the area, designate dedicated zones for prep, exposure, printing, and curing. Check that PPE is available and easily reachable. Gather all tools and materials, then power down any nearby equipment that could interfere. A calm, organized start reduces errors later in the run.
Tip: Label cords and PPE stations; a clean bench speeds up setup. - 2
Inspect machine and safety checks
Do a visual inspection of the frame, platen, and clamps. Make sure there are no loose components and that the power wiring is intact. Enable safety interlocks as required and verify the emergency stop works.
Tip: If anything looks damaged, stop and address it before proceeding. - 3
Mount the screen and align with platen
Secure the screen frame onto the exposure/printing area and align with the platen marks. Ensure the screen sits square and can move evenly without binding. Tighten clamps evenly to prevent tilt during prints.
Tip: Use a small square or alignment jig to confirm perpendicularity. - 4
Coat the screen with emulsion and dry
Apply emulsion evenly using a scoop coater, ensuring a uniform thickness. Allow to dry in a dark, dust-free environment until fully hardened. Avoid exposure to direct light during drying to prevent premature hardening.
Tip: Keep emulsion within the recommended shelf life and temperature range. - 5
Expose the screen with your design
Place the design under the screen and expose with the UV light for the recommended time. Rinse surface with water to reveal the stencil. Inspect the stencil for complete coverage and sharp edges; repeat exposure if necessary.
Tip: Mark exposure times for different emulsions to speed future jobs. - 6
Wash out the stencil and inspect
Rinse the unexposed emulsion away to reveal the design. Check for pinholes, ghosting, or incomplete areas. If issues appear, adjust the stencil or re-expose as needed.
Tip: Use a bright white light when inspecting for fine details. - 7
Prepare inks and perform a test print
Set ink viscosity according to manufacturer guidelines and test on scrap fabric. Adjust squeegee pressure and off-contact based on results. Record settings for future reference.
Tip: Keep a quick-reference sheet with mesh count, ink type, and best squeegee durometer. - 8
Run a production test and tune
Perform a short run on real stock, observe color buildup and edge quality. Make micro-adjustments to print stroke, speed, and curing time. Validate repeatability across multiple prints.
Tip: Aim for consistent off-contact and identical staging for all repeats.
People Also Ask
What is a screen printer machine?
A screen printer machine is a device that pushes ink through a mesh screen onto substrates, using a stencil to create images. It can range from manual to automatic systems. Proper setup ensures accurate registration and repeatable results.
A screen printer machine pushes ink through a mesh stencil onto materials, with manual or automatic options to ensure consistent prints.
What tools do I need to start?
Essential items include a screen printer machine, screens, squeegees, emulsion, an exposure unit, ink, and a curing method. A clean workspace and safety gear are also important for a safe, effective setup.
You’ll need the printer, screens, emulsion, exposure unit, ink, squeegees, and a curing method, plus a safe workspace.
How long does setup take for a first run?
Expect a setup time of roughly 60-120 minutes for a first run, including screen preparation, exposure, and initial test printing. Time varies with experienced operators and equipment complexity.
Usually about an hour to two, depending on equipment and experience.
How do I troubleshoot misprints?
Check alignment marks, stencil adhesion, ink viscosity, and off-contact settings. Perform a controlled test print after each adjustment to confirm changes fix the issue without introducing new problems.
Look at alignment, stencil adhesion, and ink mix, then test print to confirm fixes.
Can I upgrade from a manual to a semi-automatic setup later?
Yes. Start with a solid manual workflow, document settings, and build a plan for upgrading components as your volume grows. Consider a transition to semi-automatic handling for higher throughput without sacrificing quality.
You can upgrade later; begin with a solid manual workflow and scale up when needed.
Watch Video
Quick Summary
- Prepare a dedicated, organized workspace.
- Document mesh, ink, and exposure settings for reuse.
- Calibrate alignment and off-contact for sharp prints.
- Maintain equipment to minimize downtime.
