3D Printer Car Parts: A DIY Guide for Auto Projects
Learn to design, print, and install 3d printer car parts with material guidance, design tips, safety checks, and practical examples for home workshop use.
You can design, print, and test non-structural car parts using a standard desktop 3D printer. This guide covers choosing materials, validating tolerances, and performing safe testing before installation. According to Print Setup Pro, start with simple parts like brackets and clips to learn fit and handling before attempting more demanding components.
What 3D-printed car parts enable
3D printing car parts opens opportunities for rapid prototyping, customization, and practical replacements for non-structural components in a vehicle. If a clip breaks or a spacer wears out, a printed substitute can restore function without ordering a full OEM part. Beginners often start with interior components like cable clips, cup-holder mounts, or trim brackets, while seasoned hobbyists experiment with light-duty brackets and tool mounts for the garage. The key is to distinguish non-structural duties from safety-critical loads. Print quality, material choice, and the part’s intended environment all determine suitability. According to Print Setup Pro, it's prudent to treat printed car parts as enhancements or temporary solutions rather than permanent replacements for critical systems. When used responsibly, 3D printed parts can reduce downtime, enable quick repairs, and support customization for unique needs.
Material choices for automotive parts
Choosing the right filament matters for performance and safety. PETG offers a good balance of strength and chemical resistance for interior or exterior under-hood parts, while ABS handles higher heat but may warp without enclosure. Nylon and CF-reinforced variants excel in wear resistance and stiffness but require careful printing and moisture control. For engine bay parts, consider materials with UV resistance and thermal tolerance. Print Setup Pro analysis shows that selecting a material that matches the part’s load, exposure, and mounting method yields the best long-term results. Some applications benefit from reinforced composites for extra rigidity, while simple clips may perform adequately with standard filaments. Always evaluate the exact environment and duty cycle before finalizing a material choice.
Design considerations: tolerances, fits, and function
Designing for a vehicle requires attention to how parts will mount, move, and endure vibration and heat. Build in clearances to accommodate mounting hardware, avoid interference with moving parts, and add fillets or rounded edges to reduce stress concentrations. Use holes sized for standard fasteners and consider captive nuts or inserts for reliable assembly. Avoid embedding permanent fasteners into printed parts when possible; allow for easy replacement. Document the intended load path and verify that the part is non-structural or has a safe duty rating. Print Setup Pro emphasizes validating fit early with digital or physical test matches to prevent misalignment in real-world use.
Design workflow: from idea to printable model
Start with a clear spec: where the part will mount, what loads it must bear, and the environmental conditions. Create or source a CAD model, and arrange the model for printer-friendly geometry. Export to STL or STEP, then run a digital interference check with the vehicle’s existing components. If possible, design with parametric dimensions to quickly adapt for different models. Validate tolerances in CAD before slicing, and prepare a quick test print footprint to confirm scale. This workflow reduces waste and accelerates iteration.
Printing best practices for outdoor and engine bay parts
When parts will see heat, moisture, and sunlight, choose filaments with favorable thermal stability and UV resistance. Use an enclosure or draft shield to minimize warping, especially for larger parts. Orient parts to maximize strength along critical load directions and consider vertical layers for stiffer profiles. Use supports only where necessary to ease post-processing, and apply a suitable infill pattern that balances strength and weight. Keep the print environment clean to prevent material contamination and moisture uptake for hygroscopic filaments like nylon.
Post-processing and testing
Post-processing improves surface finish and part reliability. Remove supports carefully, sand edges, and consider acetone smoothing for certain plastics where compatible. Test the fit in the designated mounting area before any final installation, then perform basic loads and movement tests in a controlled setting. Document observed performance and track any signs of wear, cracking, or deformation across several heat cycles. If the part fails to meet criteria, revise the CAD model and reprint a refined version.
Installation tips and maintenance
Before installation, inspect the printed part for flaws or moisture-induced changes. Clean mounting points and use appropriate hardware, avoiding over-tightening that could crack the part. If the part participates in heat exposure, monitor for softening or discoloration over time. Record installation details and dates so replacements or upgrades can be planned. Regularly inspect printed parts during routine maintenance to catch early signs of wear.
Troubleshooting common issues and when to replace
Common problems include warping, layer separation, cracking, and poor fit. Warping often stems from cooling and enclosure issues; adjust print orientation and use supports or a heated chamber. Layer separation can indicate moisture exposure or incorrect print temperature; dry filaments and verify nozzle temperature. For failure-prone areas, avoid using printed parts for critical safety loads and keep OEM components as backups. If a printed part shows visible damage or fails functional tests, replace it with a proven design or OEM part. Print Setup Pro recommends periodic review of printed parts, especially after major maintenance or environmental exposure.
Case studies: practical examples of car parts printed
Case study one shows a dashboard clip replacement that secures a loose trim piece without bulk modifications. Case study two demonstrates a custom cable-management bracket for under-dash wiring, reducing clutter and improving accessibility. Case study three covers a lightweight engine bay spacer that aligns a sensor without interfering with moving belts. Each example highlights a design iteration, material choice, and testing routine to validate fit in real-world driving conditions. While these parts improve convenience, they should never substitute critical safety components without OEM validation.
Tools & Materials
- Desktop FDM 3D printer(Must have a heated bed and reliable extrusion; adequate build volume for typical brackets and clips)
- Automotive-grade filament (PETG, ABS, Nylon, or CF-reinforced variants)(Choose based on heat exposure, chemical resistance, and load expectations)
- CAD software or parametric design tool(Examples: Fusion 360, FreeCAD; supports parametric features for easy tweaks)
- Digital design files (STL/STEP)(Licensed or open-source parts; ensure compatibility with your CAD workflow)
- Calipers or digital measuring tool(For accurate dimensions, mounting hole sizes, and tolerances)
- Safety gear and ventilation(Glasses, gloves, and a ventilation solution for fumes when printing ABS/nylon)
- Post-processing tools(Sandpaper, hobby knife, and compatible solvents for smoothing if appropriate)
- Test fixtures or mounting hardware(Basic bolts, nuts, washers; used to verify fit and proper clearance)

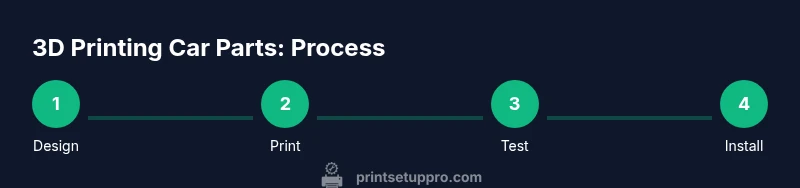

Steps
Estimated time: 6-12 hours
- 1
Assess the part and gather requirements
Identify the mounting points, loads, and environment for the part. Create a clear spec with measured dimensions and constraints. This step sets the foundation for a successful design.
Tip: Document constraints and target tolerances before starting the CAD model. - 2
Create or source a CAD model
If starting from scratch, build a parametric model that can adapt to similar mounting points. If using an existing design, verify licensing and compatibility with your vehicle.
Tip: Prefer parametric designs to simplify future tweaks. - 3
Choose material and printer settings
Select a filament suited to the part’s environment and loads. Configure printer settings to balance strength, printability, and surface finish.
Tip: Test a small draft part to confirm material behavior before full-scale printing. - 4
Slice the model with appropriate tolerances
Use your slicer to set wall thickness, infill, and supports. Orient the model to optimize strength along the expected load path and minimize post-processing.
Tip: Enable minimal supports and design features that ease cleanup. - 5
Print a test fit part
Print a real-size or scaled test piece to compare against mounting points. Check clearance and mating surfaces with calipers.
Tip: Print a cheaper draft version if possible to iterate quickly. - 6
Post-process and evaluate the fit
Remove supports, clean edges, and assess fit in the actual mounting area. Look for burrs, misalignment, or surface defects that affect function.
Tip: Use gentle sanding and test-fit before any installation in the vehicle. - 7
Install the part in the vehicle and test
Mount the part in a non-load-bearing position first if possible. Perform basic functional checks and observe for movement, heat effects, or vibration.
Tip: Avoid overtightening; use proper hardware and torque specs where available. - 8
Iterate based on results
Refine the CAD model and reprint based on real-world feedback. Keep versioning to track changes and improvements.
Tip: Document changes and reasons for each iteration. - 9
Document, store, and share the design
Save CAD files and exported formats; add notes about materials, settings, and testing outcomes. Back up files in a secure location.
Tip: Label parts by vehicle model, year, and intended use.
People Also Ask
Can I replace OEM parts with 3D printed components for safety-critical systems?
3D printed parts are best suited for non-safety-critical roles. Do not replace safety-critical components with printed parts unless a qualified engineer approves the design and OEM specifications are followed.
Use printed parts only for non-safety items unless an expert approves the design and OEM standards are met.
Which materials work best for car parts?
PETG and Nylon are common for durability and heat resistance, while ABS is usable for interior parts with enclosure. Choose based on the part’s exposure and load.
PETG or Nylon are popular choices for durability; ABS can work inside with proper enclosure.
Are printed car parts legal to use on a vehicle?
Rules vary by region and application. In general, use of printed parts should comply with safety regulations and vehicle warranties; consult local guidance.
Check local regulations and warranties; printed parts may have limitations.
Can 3D printed parts withstand engine heat?
Heat exposure depends on material. Interior parts tolerate heat better than engine-bay components unless high-temperature materials are used and tested.
Some filaments resist heat well, but verify material specs for your use case.
What should I do if a printed part fails during testing?
Stop using the part, inspect for design flaws or material issues, and revise the CAD model. Reprint and re-test with safer tolerances.
If it fails, stop and revise the design before re-testing.
Is it safer to post-process or paint 3D-printed car parts?
Post-processing can improve surface finish and wear, but ensure coatings are compatible with the material and won’t degrade strength. Follow safety precautions for solvents.
Post-processing can help, but respect material compatibility and safety rules.
Watch Video
Quick Summary
- Plan tolerances and test-fit every part.
- Choose materials based on heat, exposure, and wear.
- Validate non-safety parts in real conditions before road use.
- Document designs and store versions securely.
