3d Printer XYZ Setup Guide: Calibrate, Print, Troubleshoot
A comprehensive, printer-by-printer setup guide for the 3d printer xyz. Learn unboxing, bed leveling, extrusion calibration, firmware basics, first prints, and troubleshooting to achieve reliable results every time.
Learn how to set up and calibrate your 3d printer xyz for reliable prints. This quick guide highlights essential steps: unboxing, bed leveling, extruder calibration, filament loading, and a first test print. Gather basic tools, a clean workspace, and firmware access before you begin. Print Setup Pro recommends documenting every setting for future troubleshooting.
Why the 3d printer xyz matters for reliable home printing
The 3d printer xyz is designed to balance rigidity with accessibility, making it a popular choice for home offices, students, and DIY enthusiasts. In this guide, we focus on practical, repeatable steps to get prints right from the first test piece. According to Print Setup Pro, a stable frame, good bed adhesion, and properly calibrated extrusion are the three pillars of consistent results. By following these steps, you’ll reduce common issues like warping, under-extrusion, and failed first layers, and you’ll develop a repeatable workflow for future projects.
Tools, workspace, and mental model for success
Before you power on, set up a clean, level workspace with ample lighting. A stable desk or workbench minimizes vibrations that affect print quality. The 3d printer xyz benefits from a dedicated power strip with surge protection. Keep calibration tools handy and document each setting you adjust. A calm, methodical approach reduces trial-and-error and speeds up your learning curve.
Unboxing, inspection, and first impressions
Start by inspecting all components for transport damage, loose screws, or bent rods. Verify the build plate, printer gantry, and spool holder move freely without binding. If a modular tool head is provided, check that all nozzles and heater blocks are properly tightened. Create a quick parts checklist to ensure you have all required items before proceeding. This initial audit prevents missteps during assembly.
Assembly and chassis checks: rigidity and alignment
Tighten frame screws to the manufacturer’s recommended torque using the included hex keys. Ensure the vertical columns are plumb and the belt tensions are even. Misaligned rails can cause print artifacts, so take time to verify square corners across the frame. A simple cross-measure between opposite corners can reveal skewed mounts that merit adjustment.
Bed leveling and Z-offset: the foundation of first-layer quality
Level the bed using a standard feeler gauge or a piece of standard printer paper to set the gap between the nozzle and bed across four corners. If your printer uses an automated bed leveling probe, run the probe calibration, then fine-tune with manual adjustments. Record your final Z-offset value for future prints; small changes here dramatically impact first-layer adhesion.
Extruder calibration and extrusion settings: matching toolpath to reality
Calibrate the extruder steps per millimeter (E-steps) to ensure the printer pushes the correct amount of filament. Use a known filament diameter and measure extruded length to compute the correct steps. Update the firmware or printer EEPROM accordingly. Align the commanded vs. actual extrusion to eliminate under- or over-extrusion in subsequent prints.
Filament handling, hotend temps, and bed surface choices
Select a filament type that matches your project requirements and set an initial temperature that is within the recommended range. If you’re new to PLA or PETG, start with PLA and a moderate bed temp to simplify first results. Maintain clean filament paths and use a quiet spool holder to prevent tangling that could interrupt prints.
First test print: planning the model and evaluating print results
Choose a simple calibration model (e.g., a cube or benchy variant) to assess dimensional accuracy, wall thickness, and layer bonding. Watch bed adhesion closely: a perfectly flat bed with proper first-layer height typically yields the best results. Record observations and adjust layer height, flow rate, and cooling as needed.
Fine-tuning print quality: common knobs and their effects
Resolution, layer height, cooling fan speed, and print speed all interact. Start with a modest speed and layer height, then incrementally tweak each variable while printing small test objects. Use slicer profiles designed for the 3d printer xyz and your chosen filament to keep settings consistent across projects.
Maintenance cadence and long-term care
Establish a routine: clean the nozzle regularly, inspect belts for wear, re-tension as needed, and lubricate moving parts per the manufacturer’s guidance. Store filaments in a dry environment, check for clogs, and replace worn nozzles or PTFE tubes when performance declines. A consistent maintenance schedule keeps prints predictable.
Safety and best practices for ongoing use
Always power off and unplug before maintenance, handle hot components with care, and use gloves when necessary. Keep a small toolkit nearby for quick fixes, and never force parts into misalignment. Document changes to settings and firmware so you can revisit them if prints start to drift.
What to do if things go wrong: a quick triage checklist
If your first layers don’t adhere, re-check bed level, Z-offset, and extrusion calibration. If you see under-extrusion, verify filament feed path and nozzle cleanliness. For warping, ensure adequate corner adhesion and consider a brim or enclosure to stabilize temperatures.
Tools & Materials
- Allen wrench set (multi-size)(Ensure metric sizes compatible with printer screws (e.g., 1.5mm, 2.0mm, 2.5mm))
- Digital caliper(Precise measurement for extrusion tests and bed leveling checks)
- Phillips and flathead Screwdrivers(For panel screws and hotend mount)
- Calibrated filament spool with tolerance gauge(Helps verify diameter for extrusion math)
- Feeler gauge or standard printer paper(Used for bed leveling and nozzle gap)
- Spatula/print removal tool(First-layer checks and model removal)
- Fine-tibered needle or nozzle cleaning tool(Clear minor clogs after tests)
- Digital thermometer/infrared temp gun(Helpful for checking bed and nozzle temps)
Steps
Estimated time: 90-120 minutes

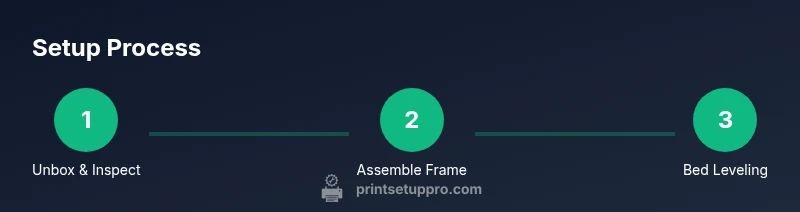

- 1
Unbox and inspect components
Carefully unpack the 3d printer xyz and verify all listed parts are present. Look for shipping damage and loose components. This step saves time and prevents mid-project failures.
Tip: Take photos of each stage in case you need to reference later. - 2
Assemble frame and mount components
Tighten frame screws to the recommended torque and ensure rails move smoothly. Misalignment here propagates issues in all subsequent steps.
Tip: Use a torque driver if available to avoid over-tightening. - 3
Attach build plate and print surface
Secure the build plate or bed surface with proper fasteners. Check that the surface is clean and square to the axis. A warped bed ruins first-layer consistency.
Tip: If your surface is removable, verify it sits flat without gaps. - 4
Power on and navigate to baseline firmware
Power up and update to the printer’s baseline firmware if a newer version is provided. Confirm motor directions and thermistor readings.
Tip: Back up original firmware before updating. - 5
Level the bed manually or run auto-level
Perform bed leveling across four corners and verify the nozzle-to-bed gap is consistent. Record the final Z-offset value for future prints.
Tip: Use a single piece of printer paper and aim for slight resistance. - 6
Calibrate extrusion and steps per millimeter
Mark a fixed length of filament, command a known length of extrusion, and measure actual output. Update E-steps in firmware or EEPROM as needed.
Tip: Repeat twice to verify stability. - 7
Load filament and dry-run the hotend
Feed filament through the extruder and ensure smooth motion without grinding. Run a short purge to verify molten filament flow.
Tip: Keep the nozzle cool during loading to prevent clogs. - 8
Run a small test print at low height
Start with a 20–30 minute calibration model to assess first layer, wall thickness, and overhangs. Adjust flow rate and cooling as needed.
Tip: Capture photos of the first layer to compare against reference images. - 9
Tune print settings for quality
Iterate on layer height, nozzle temperature, bed temperature, and cooling to find a stable combination for your filament.
Tip: Change only one variable at a time to identify its effect. - 10
Inspect and adjust after the first run
Check for warping, gaps, or poor adhesion. Re-level or re-calibrate if necessary and re-run the test.
Tip: Document changes for future reference. - 11
Plan a maintenance cycle
Create a routine for nozzle cleaning, belt tension checks, and smooth-rod lubrication every few prints.
Tip: Keep a log of maintenance dates and outcomes. - 12
Safe shutdown and storage
Power down safely, unplug, and store tools and spare parts in a dry area. Inspect the spool to prevent tangles before next use.
Tip: Allow components to cool fully before handling.
People Also Ask
What is the first step after unboxing the 3d printer xyz?
Begin with a thorough inspection for shipping damage, then assemble the frame and verify smooth motion of all axes before powering on. This reduces the chance of misalignment and print faults.
Start by inspecting for damage, then assemble the frame and check axes for smooth motion.
How often should I recalibrate extrusion?
Recalibrate extrusion whenever you switch filament types or notice under- or over-extrusion in prints. Minor drift can occur over time, so a quick E-steps check every few weeks helps maintain accuracy.
Recheck extrusion whenever you change filament or see extrusion issues.
What bed temperature is typically best for PLA on the xyz printer?
PLA generally prints well with a bed temperature around 50-60C, depending on your surface. Start at 60C and adjust down if warping or corners lift occur.
PLA bed temps usually 50-60C; start at 60C and tweak as needed.
Can I use auto-leveling on the xyz printer?
If your model includes an auto-level sensor, run it first to establish a baseline, then fine-tune with manual adjustments if necessary. Auto-leveling saves time but may still need a manual touch for perfect first layers.
Use auto-leveling first, then fine-tune manually if needed.
What maintenance should be performed after 10–20 prints?
Inspect belts for wear, clean the nozzle, lubricate rails, and re-check bed leveling. Sustained print quality depends on a tidy, consistent maintenance routine.
Check belts, clean the nozzle, lubricate parts, and relevel the bed after 10–20 prints.
Is enclosure necessary for ambient-temperature control?
An enclosure helps with temperature stability and reduces drafts, improving print reliability on some filaments. It’s optional but beneficial for higher-temp materials.
Enclosures stabilize temperature and help with certain materials.
Watch Video
Quick Summary
- Calibrate extrusion accuracy to match real filament flow
- Level bed correctly and record Z-offset for future prints
- Use a controlled, stepwise approach to tuning settings
- Maintain a regular upkeep routine to sustain reliability
