Printed 3d Printer: Setup, Calibration, and Troubleshooting
Learn to set up, calibrate, and troubleshoot a printed 3d printer with practical steps, essential tools, and safety tips for home use. From unboxing to first calibration print, this guide covers all you need to start printing.
Goal: set up a printed 3d printer, level the bed, load filament, and complete your first calibration print. You’ll need the printer, a spool of filament, basic tools, and a memory card. This quick guide outlines assembly, safety checks, and the initial test print to minimize common failures and get reliable results right away.
What is a printed 3d printer?
According to Print Setup Pro, a printed 3d printer builds objects by extruding melted filament in thin, precise layers to form a solid object. It relies on a heated nozzle, a motion system (rails, belts, or hustling gantry), and a digital model sourced from CAD or STL files. For home offices, classrooms, and hobbyists, a printed 3d printer opens doors to rapid prototyping, custom parts, and creative projects. The core idea is to translate a virtual design into physical reality, one layer at a time. Differences among machines typically show up in build volume, frame rigidity, and nozzle throughput, which influence accuracy and finish.
The keyword here is practical outcomes: accuracy, repeatability, and reliability. As you explore models, focus on how well the printer maintains a consistent first layer and how easy it is to swap components like nozzles and beds. This is where many beginners stumble, so a steady, methodical approach pays off early.
The Print Setup Pro team found that choosing a printer with a rigid frame and stable bed surface reduces resonance and improves print quality. For a printed 3d printer, stability is often the difference between a smooth first layer and a failed attempt that wastes material.
notePatternOnlyForContentFYI":null},
Tools & Materials
- Printed 3d printer(Place on a stable, level surface; ensure power is accessible.)
- Filament spool (1.75 mm recommended)(PLA is beginner-friendly; store filament in a dry place.)
- Calipers or a ruler(For measuring first-layer height and tolerances.)
- Spatula or scraper tool(For safely removing prints.)
- Isopropyl alcohol wipes(Bed cleaning before first use.)
- Allen/Hex wrenches set(For assembly or tension adjustments.)
- Digital thermometer or bed temperature sensor(Optional for advanced users.)
- Safety goggles(Protect eyes when working with hot components.)
- Memory card or USB drive(Load and transfer G-code / firmware updates.)

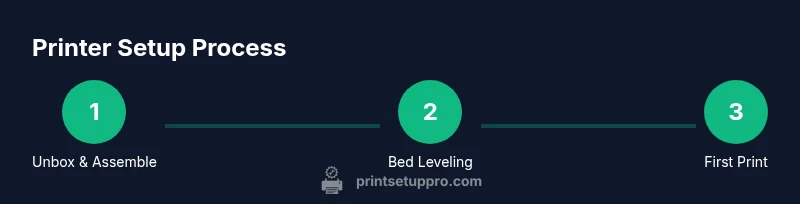

Steps
Estimated time: 45-75 minutes
- 1
Unbox and assemble the printer
Remove packaging, inspect parts, and assemble according to manufacturer instructions. This creates a stable base and ensures correct axis alignment. Take your time to verify smooth motion on all axes before power-up.
Tip: Double-check belt tension and z-axis couplings before powering on. - 2
Power on and configure initial settings
Connect to power, boot the controller, and set language, units, and motion speed. If a firmware update is available, apply it to ensure the latest features and bug fixes. Confirm that fans and heaters respond correctly before loading filament.
Tip: Enable a reachable e-stop and save a basic profile for future prints. - 3
Level the bed and prepare the print surface
Use a piece of printer-provided paper or a feeler gauge to adjust the bed at three corners until you feel slight resistance with the nozzle. Recheck after any head movement to ensure consistency across the print area.
Tip: Take your time; poor bed leveling is the leading cause of failed first layers. - 4
Load filament and preheat to recommended temps
Feed filament until it extrudes smoothly. Set nozzle temperature within the PLA range (roughly 190–210°C) and bed temperature around 50–60°C depending on surface. Watch for filament to ooze and stop before excess retractions.
Tip: Do not force filament; if it binds, pause and re-feed gently. - 5
Print a calibration cube and iterate
Create or load a 20mm calibration cube; print and measure with calipers. Use the results to adjust Z-offset and slicer settings, then print again until dimensions are consistent. This first test validates overall setup and readiness for real projects.
Tip: Keep notes of settings that work for future reference.
People Also Ask
What is the first thing I should do when setting up a printed 3d printer?
Unbox the printer, check all parts, and assemble per the manual. This ensures a stable foundation before powering on.
Start by unboxing, checking parts, and assembling the printer according to the manual.
Do I need a specific filament type to start?
Begin with a common PLA filament, which is forgiving for beginners. Other materials require different temperatures and bed surfaces.
PLA is a forgiving starting filament; other materials need adjustments.
How long does bed leveling take?
Initial bed leveling may take 10-20 minutes, depending on the printer. Recheck after moves or changes.
It usually takes about 10 to 20 minutes.
What safety precautions should I follow?
Keep hands away from the nozzle and heated bed; ensure good ventilation; power off during maintenance.
Avoid touching hot parts and ensure proper ventilation.
Why do prints fail, and how can I prevent it?
Common causes are improper bed leveling, under-extrusion, and warped edges. Calibrate, use correct slicer settings, and monitor first layers.
Most failures come from bed leveling and extrusion issues—calibrate and monitor.
Watch Video
Quick Summary
- Level bed for accurate prints
- Match filament to the project and slicer settings
- Follow safety and maintenance guidelines
- Test with calibration prints to ensure reliability
