Mastering Your fdm printer: Setup, Calibration, and Troubleshooting
A comprehensive, step-by-step guide to setting up an fdm printer, calibrating for first-layer precision, selecting filament, and troubleshooting common issues. Learn safe assembly, bed leveling, extrusion calibration, and reliable test prints with Print Setup Pro guidance for home offices, students, and makers.
By the end of this guide, you’ll confidently set up an fdm printer, assemble the frame, level the bed, load filament, calibrate extrusion, and run reliable test prints. You’ll need basic hand tools, safety gear, and filament for your first job. According to Print Setup Pro, following a structured setup routine minimizes jams and improves first-pass success. This article provides step-by-step instructions, practical tips, and safety warnings to help home offices, students, and hobbyists.
What is an fdm printer and how it works
An fdm printer (fused deposition modeling) creates objects by melting a thermoplastic filament and extruding it through a heated nozzle, layer by layer. The X, Y, and Z axes move the print head and bed to build your model from the bottom up. For beginners, focus on using a reliable frame, a stable bed surface, and a proven calibration routine. The term fdm printer is the shorthand most hobbyists use for these desktop 3D printers. The Print Setup Pro team notes that understanding the basics helps you diagnose issues quickly and plan the right upgrades as your projects grow.
riskNote”:null,
Tools & Materials
- Allen wrench set (metric: 1.5, 2.0, 2.5, 3.0 mm)(Essential for frame assembly and module mounting)
- Screwdrivers (Phillips PH2 and flathead 3mm)(For electronics enclosure and belt tensioners)
- Digital caliper(Precise bed level and nozzle gap measurements)
- Digital multimeter(Useful for checking power and heater circuits)
- Filament (PLA recommended for first prints)(1.75 mm diameter; 1-2 rolls)
- Isopropyl alcohol (70% or higher) and lint-free cloth(Bed cleaning and surface prep)
- Spare nozzle and hotend parts(Optional upgrades or replacements)
- Safety glasses(Protection when handling hot components)

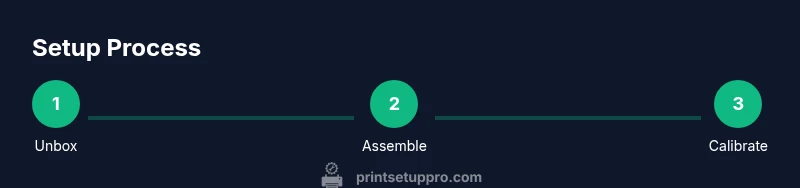

Steps
Estimated time: 90-120 minutes
- 1
Unbox and inspect components
Begin by opening all bags and laying out parts on a clean workspace. Check frame corners, belts, screws, and electronics for damage. Compare with the parts list in the manual to confirm all components are present. This early check reduces back-and-forth calls with the supplier and speeds up your setup.
Tip: Create a parts map on the work surface so you can locate items quickly during assembly. - 2
Assemble the frame and mount the gantry
Assemble the base frame first, then attach the vertical uprights. Tighten screws gradually in a crisscross pattern to keep the frame square. Mount the gantry and verify it slides smoothly along the axes with minimal resistance. Misalignment at this stage leads to crooked prints.
Tip: Use a carpenter’s square to verify right angles and re-tighten after the frame settles. - 3
Install the hotend and extruder
Mount the hotend, connect the heater cartridge and temperature sensor, and route cables away from moving parts. Attach the extruder and ensure the filament path is clear. Do a dry-run moving the nozzle without power to confirm clearance and avoid snags later.
Tip: Avoid pinching wires; leave a little slack to accommodate motion without stressing connections. - 4
Install the build plate and bed surface
Attach the heated bed (if your model has one) and secure the build surface. Ensure the bed is level with the gantry and that movement is smooth across all axes. Install any springs or washers per the manual and confirm the bed sits flat.
Tip: Check for any wobble or gaps between bed and carriage and address before heating it. - 5
Power up and install firmware
Power the unit and connect to your computer for firmware checks or updates. Load the firmware configuration for your exact model and enable essential safety features. Run a quick POST test to verify fans and LEDs function correctly.
Tip: Keep firmware backups; updating from a saved profile saves time if something goes wrong. - 6
Level the bed and set initial Z-offset
Begin with manual bed leveling or auto-level if your printer supports it. Heat the bed to printing temperature and adjust leveling screws until a small gap can be felt with a feeler gauge at several points. Save the Z-offset in your slicer so first-layer height is consistent.
Tip: Recheck after a few minutes of heating, as expansion can alter the gap. - 7
Load filament and prime the nozzle
Feed filament into the extruder and preheat to the recommended temperature for your material. Extrude a short length to prime the nozzle and verify smooth flow._Watch for gaps or blobs; adjust as needed in the slicer or extrusion multiplier.
Tip: If you see inconsistent flow, purge a few centimeters of filament and reverify the hotend temperature. - 8
Run a calibration test and adjust
Print a simple calibration model (a cube or a Benchy) to check dimensional accuracy and adhesion. Use the test output to tune layer height, extrusion width, and print speed. Iterate until results are stable across multiple attempts.
Tip: Document your baseline settings so you can reproduce good results later. - 9
Finalize settings and plan maintenance
Lock in a baseline profile for common materials, then plan a maintenance schedule: clean the bed between prints, check belts for wear, and update firmware periodically. A repeatable workflow reduces variances and speeds up future projects.
Tip: Keep a log of changes and fixes for future reference.
People Also Ask
What is an fdm printer?
An fdm printer builds objects by heating and extruding thermoplastic filament, depositing it layer by layer. The process relies on precise motion, reliable extrusion, and proper bed adhesion to form accurate parts.
An fdm printer melts plastic and lays it down in layers to build a object, one pass at a time.
Do I need to level the bed every time I print?
Bed leveling is essential during initial setup and after hardware changes. After setup, minor adjustments may be needed if prints begin to lift or crack.
Level the bed during setup and recheck if you notice adhesion problems.
Which filament should beginners start with?
PLA is typically the easiest material for beginners due to its forgiving printing characteristics, lower warping, and simple bed requirements.
Start with PLA; it’s easier to print and helps you learn the basics.
How often should I clean the nozzle?
Clean the nozzle when you notice inconsistent extrusion, blobs, or reduced flow. A cold pull or nozzle cleaning tools can fix minor clogs.
Clean the nozzle whenever you see odd extrusion; it keeps prints consistent.
Is it safe to print in a home environment?
Printing can produce fumes depending on the material. Ensure good ventilation and keep the printer away from flammable materials.
Print with ventilation and avoid placing the printer near heat sources.
What causes first-layer adhesion problems and how can I fix them?
Adhesion problems usually come from bed level, surface cleanliness, and temperature. Clean the bed, level properly, and try a primer or glue stick on the bed surface.
Make sure the bed is clean and level, and verify your first layer height and temperature.
Watch Video
Quick Summary
- Prepare tools and filament before starting
- Calibrate bed leveling and Z-offset for clean first layers
- Follow a repeatable setup workflow for reliability
- Regular maintenance extends printer life
